Workshop, February, 29, 2024

Rheological behaviour of geopolymer mortars and concretes, Thomas Heiermann, Stephan Uebachs, Brameshuber + Uebachs Ingenieure GmbH, Aachen, Germany

Mortar lab

We first tested a geoplymer or alkali activated mortar in the Viskomat NT. The mortar (fishbone) probe and the vane probe have been used.

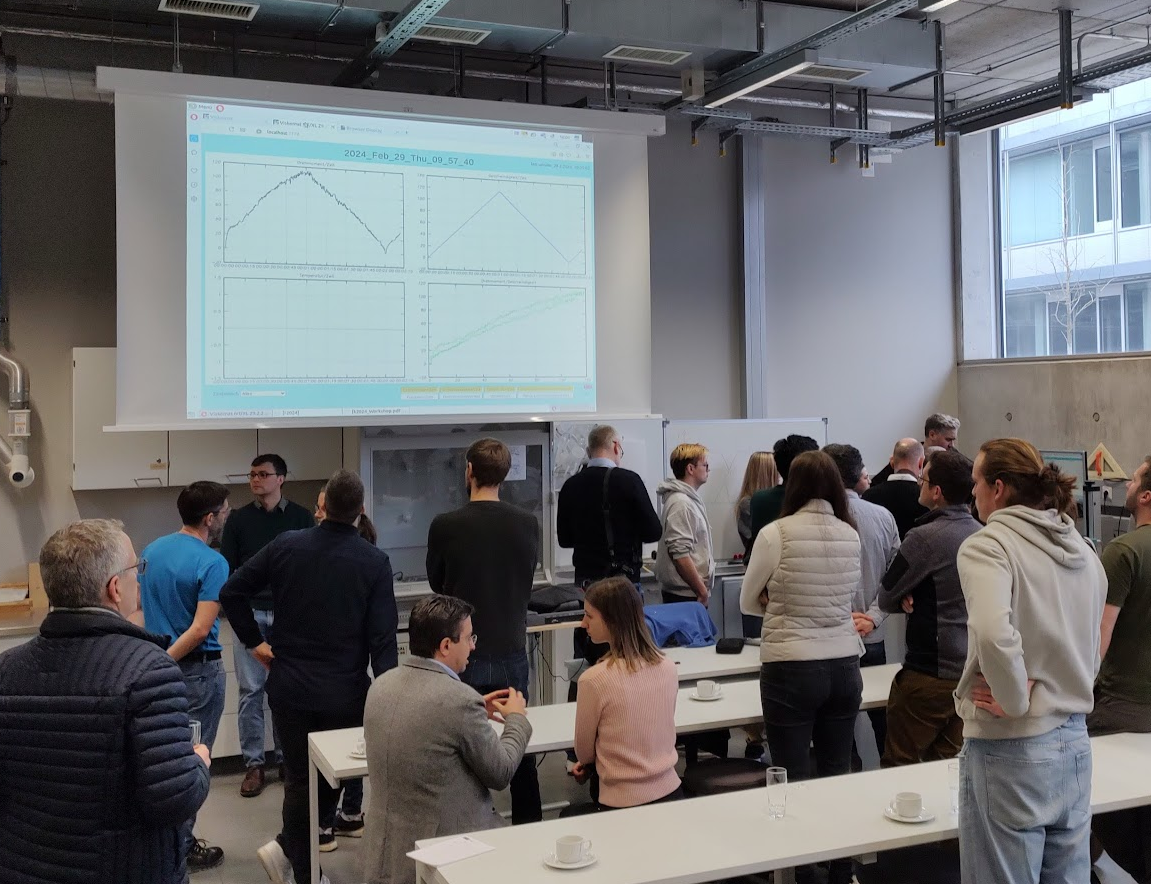

Mortar Test Lab

Testing geopolymer mortar with the Viskomat NT in the lab.

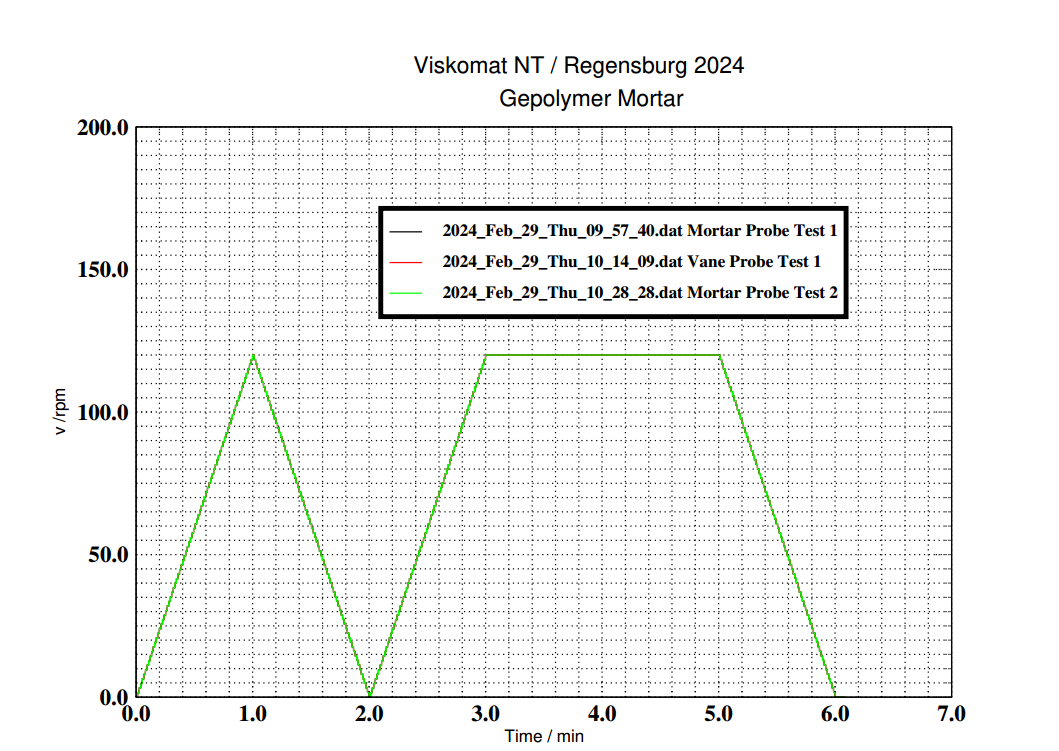

Shear rate over time for the Viskomat NT

Shear rate over time

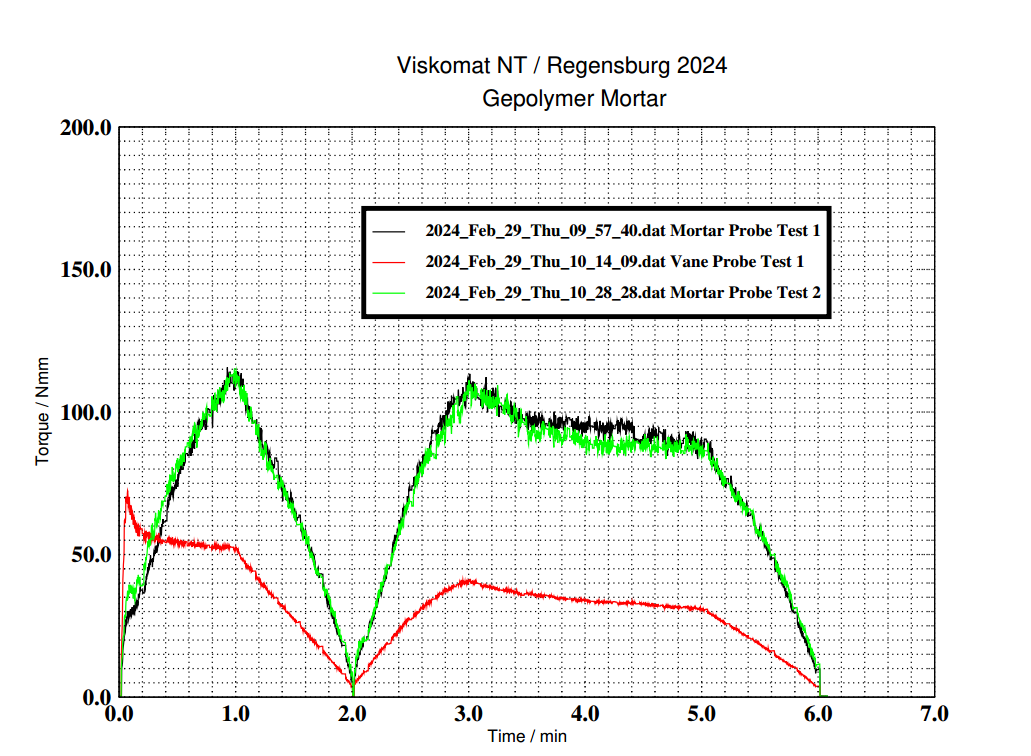

Torque over Time

Torque over Time, red curve vane probe, other curves fishbone probe.

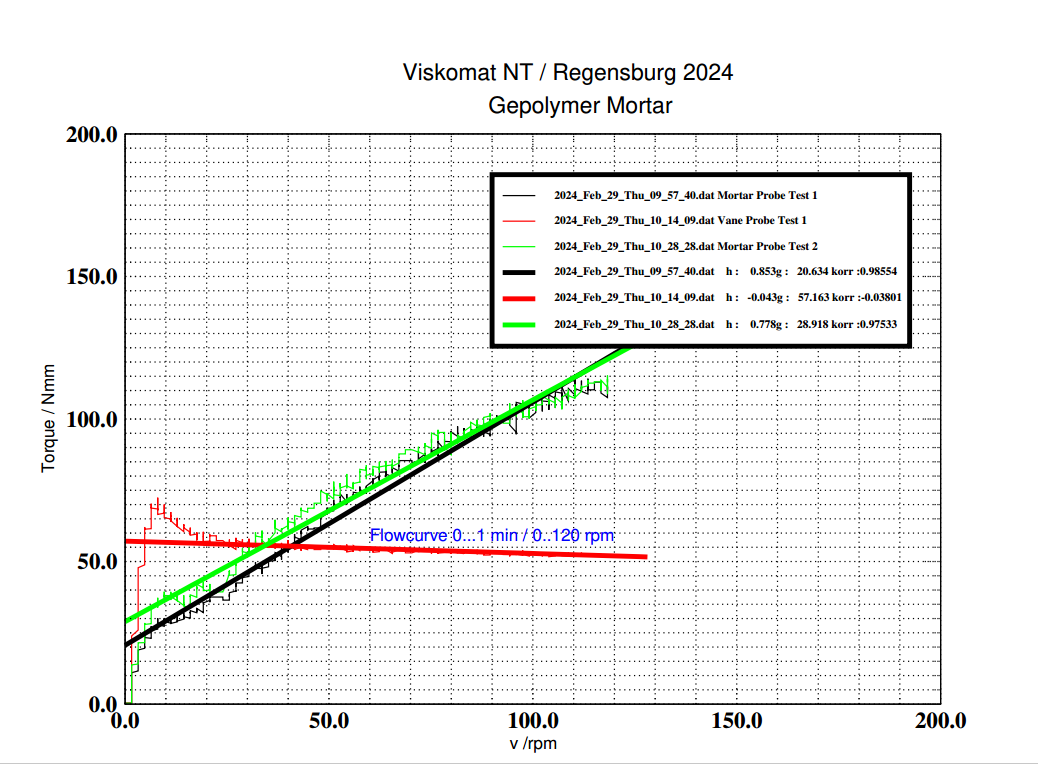

Flowcurve first slope minute 0 ... 1

Flowcurve first slope, minute 0 ... 1

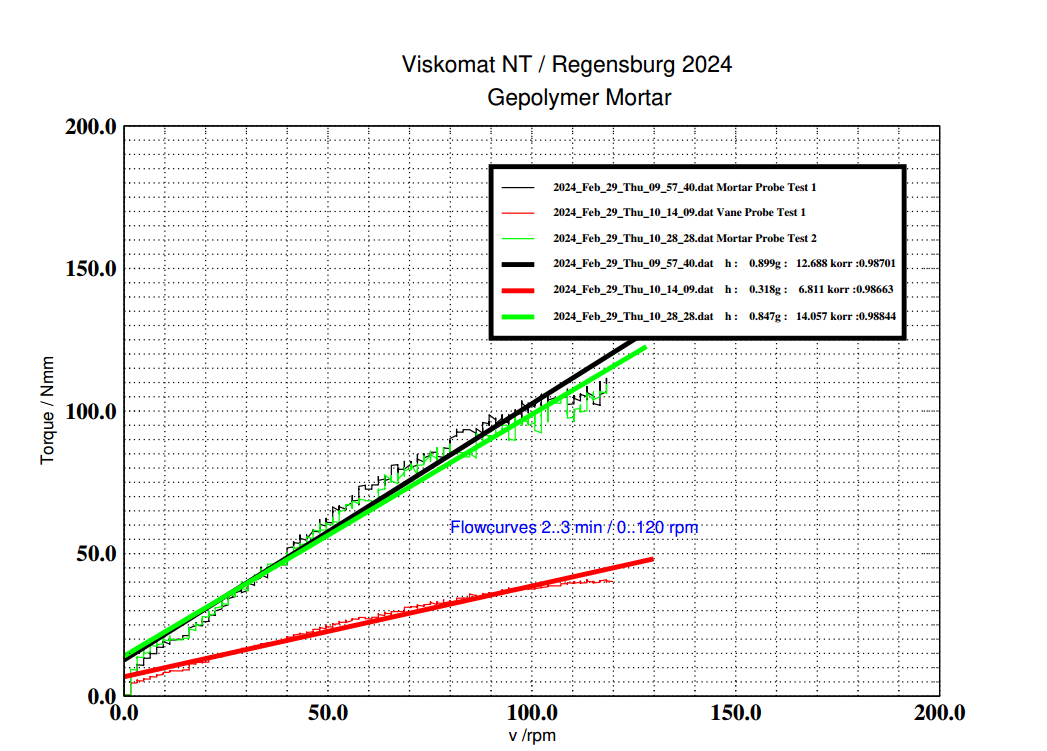

Flowcurve first downgoing slope minute 2 ... 3

Flowcurve first downgoing slope minute 2 ... 3



Flowcurve last downgoing slope minute 5 ... 6

Flowcurve last downgoing slope minute 5 ... 6



Based on this mortar a concrete was mixed (max. aggregate size 16 mm)

Following tests heve been made:

  • spread table
  • concrete rheometer eBT-V
  • rheometer for pumpability Sliding Pipe Rheometer - SLIPER

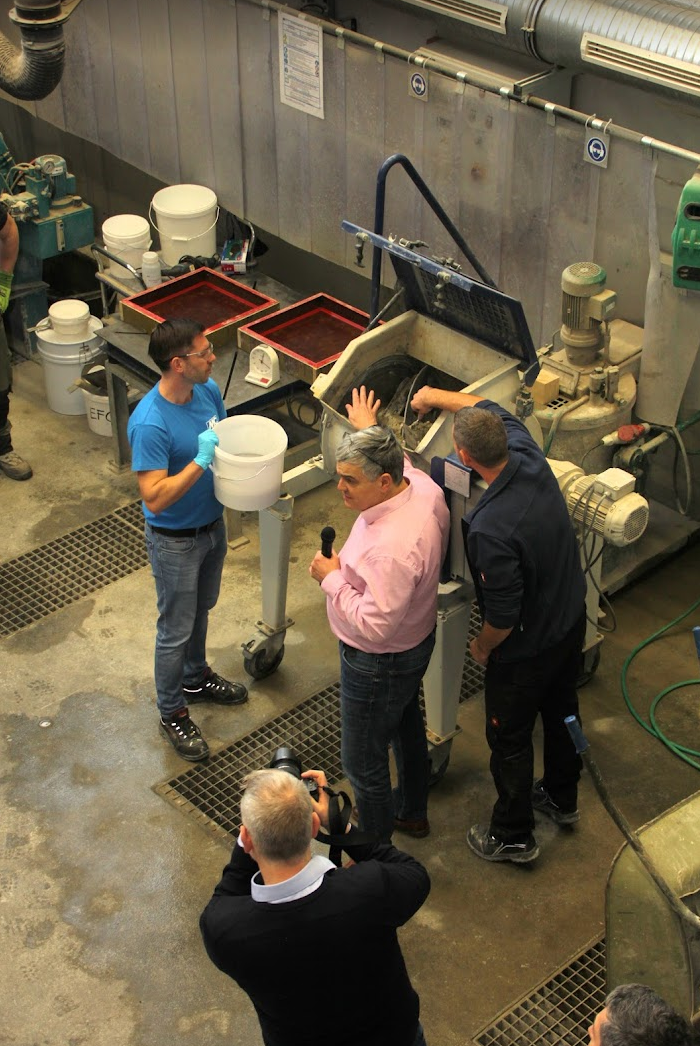

Test in the concrete lab

Test in the concrete lab in the foreground Dr. Stephan Uebachs, ibu.

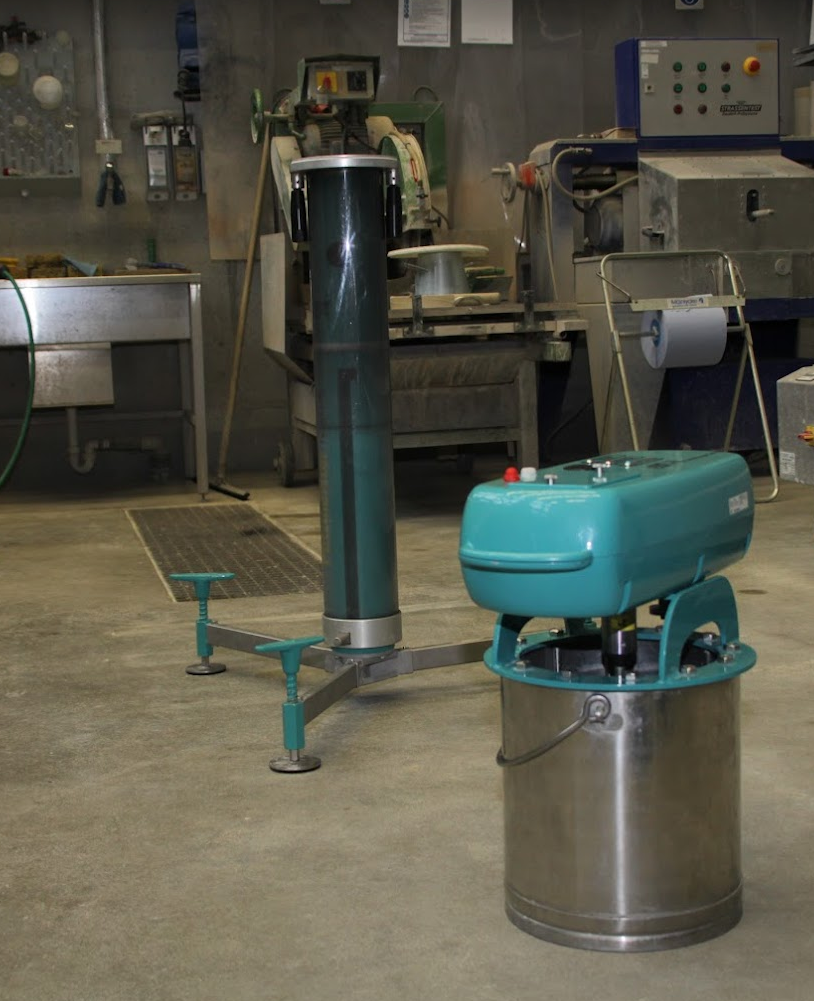

eBT-V in the foreground setup V-mode

 eBT-V in the foreground setup V-mode



eBT-V speed profile screen shot from the App

eBT-V speed profile screen shot from the App

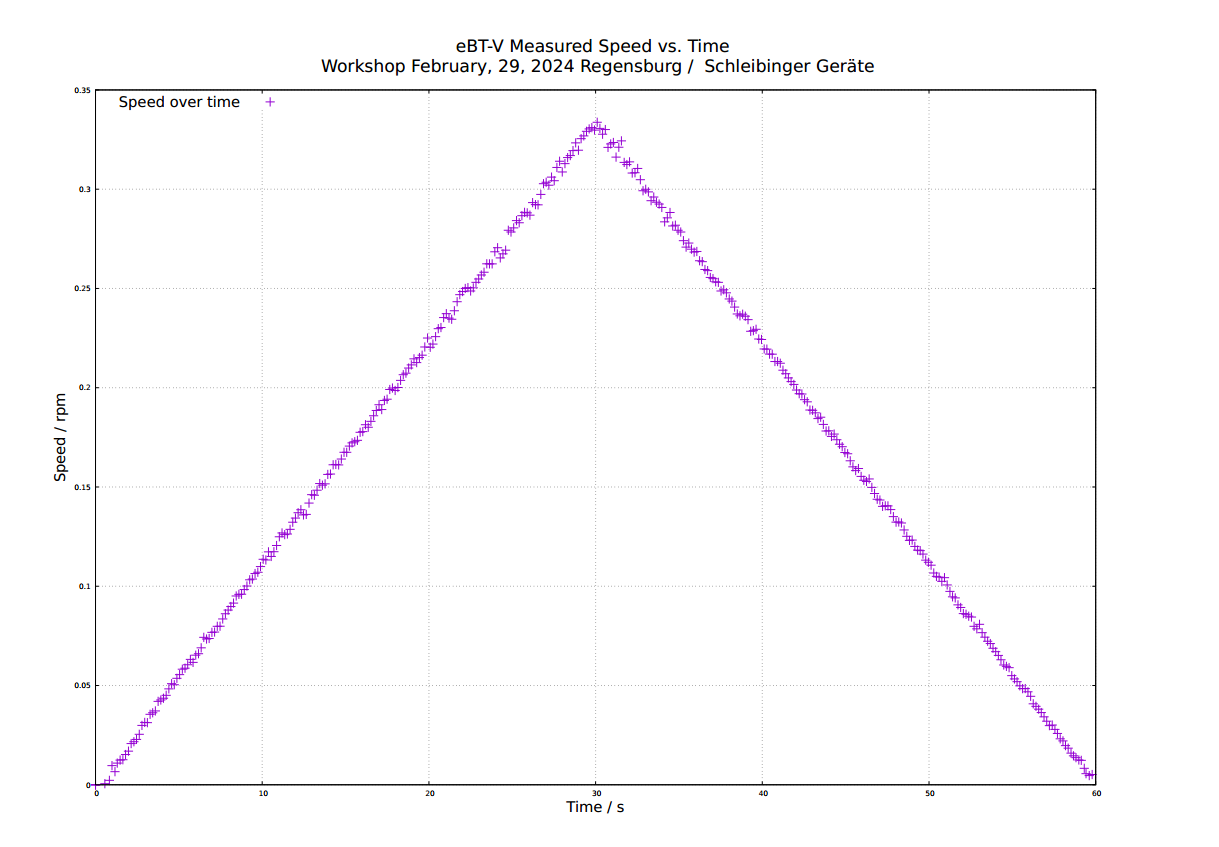

Speed profile for the eBT-V rheometer in the V mode

Speed profile for the eBT-V rheometer in the V mode

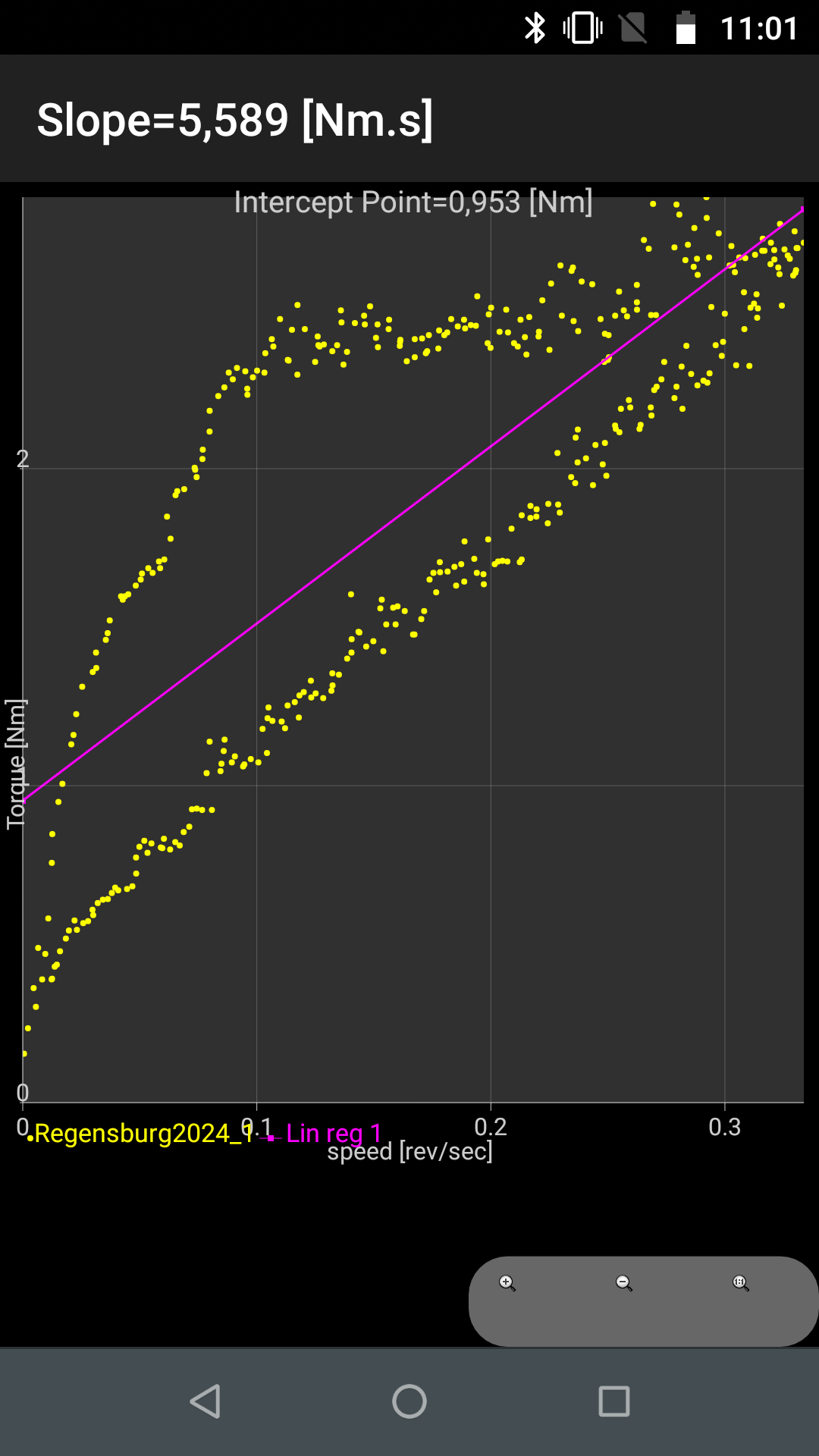

Flowcurve from the eBT-V App

Flowcurve from the eBT-V App

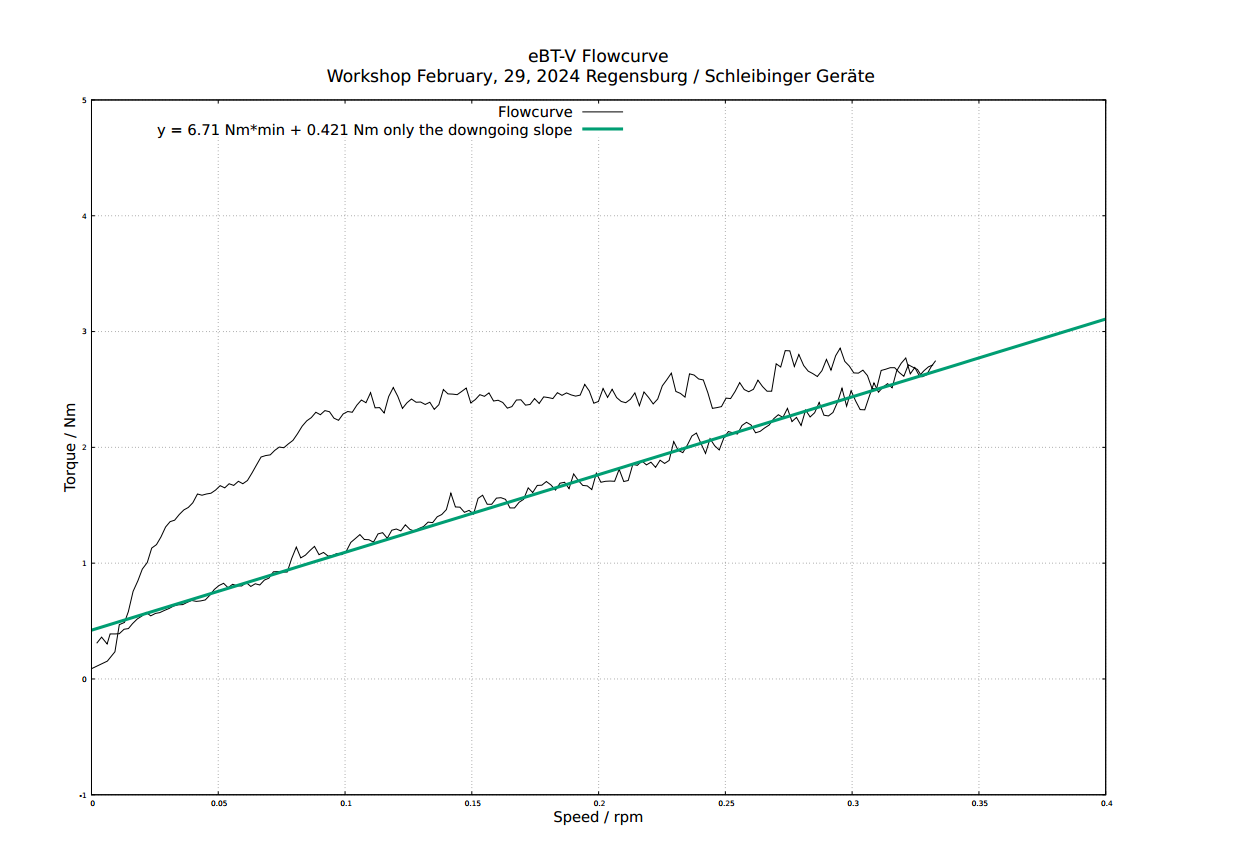

Flowcurve eBT-V, the downgoing slope is evaluated

Same flowcurve as above, eBT-V, the downgoing slope is evaluated

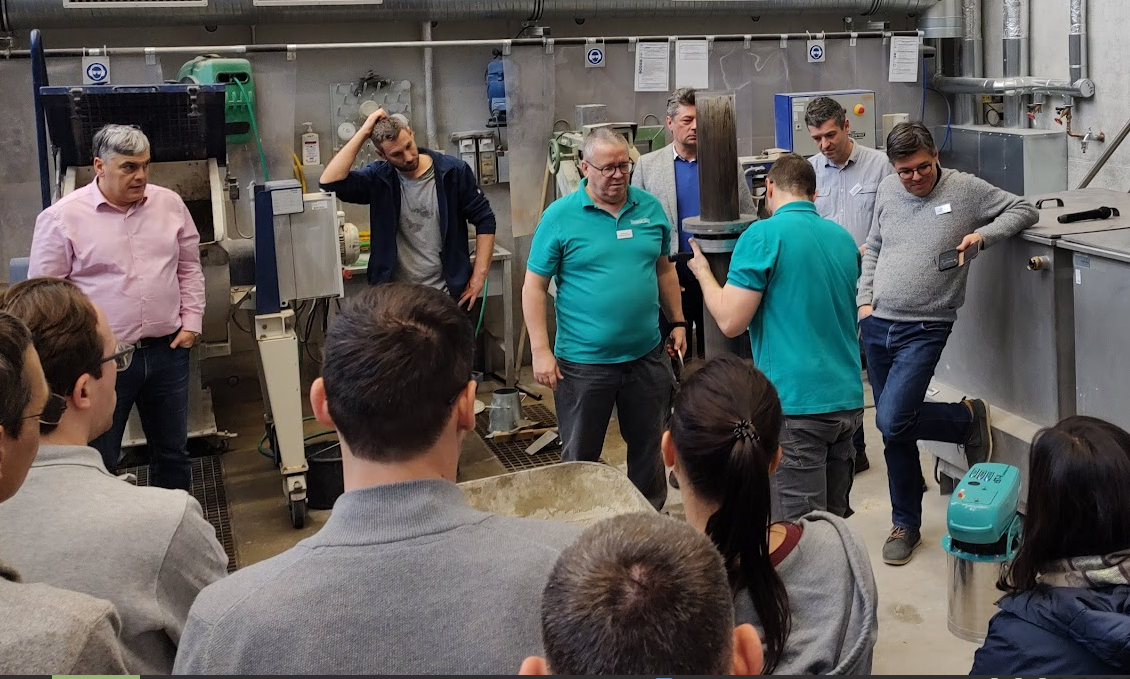

SLIPER measurment

SLIPER measurment

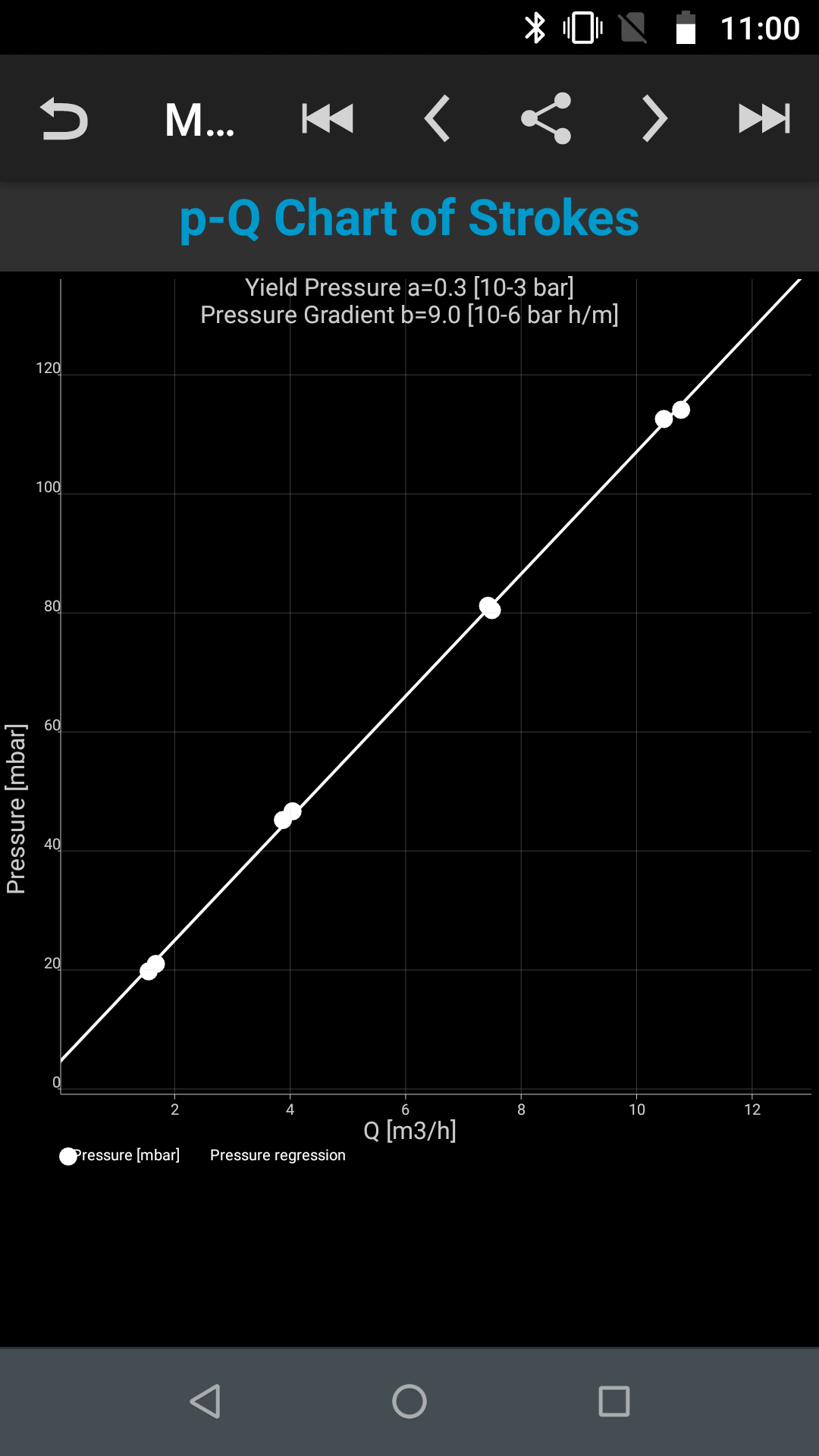

SLIPER flow-rate vs. max. pressure for different strokes. Screenshot from the App.

 SLIPER flow-rate vs. max. pressure for different strokes. Screenshot from the App.

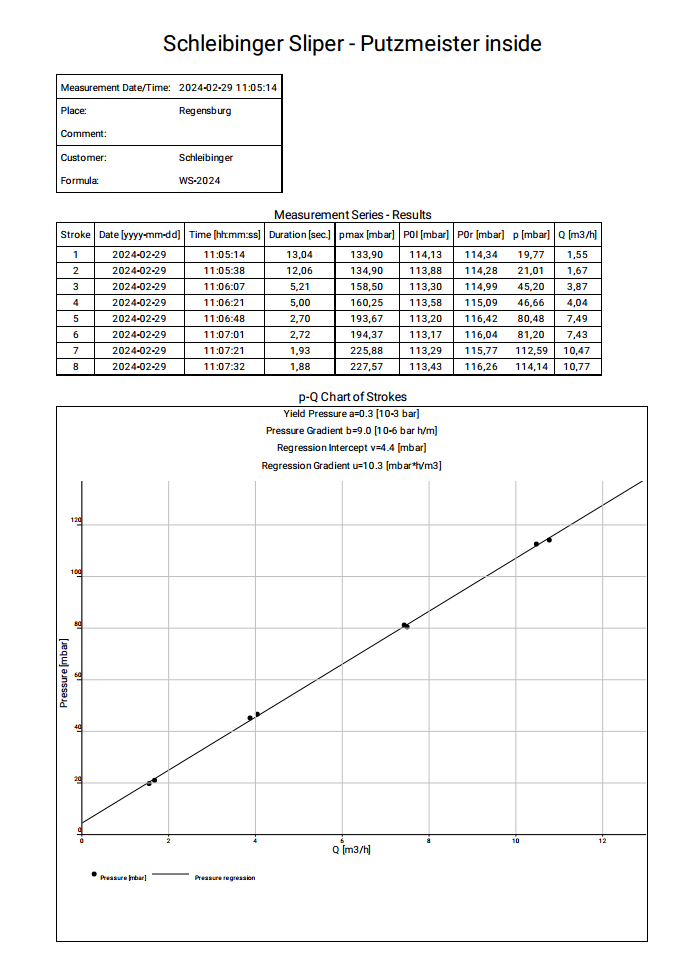

SLIPER report page 1

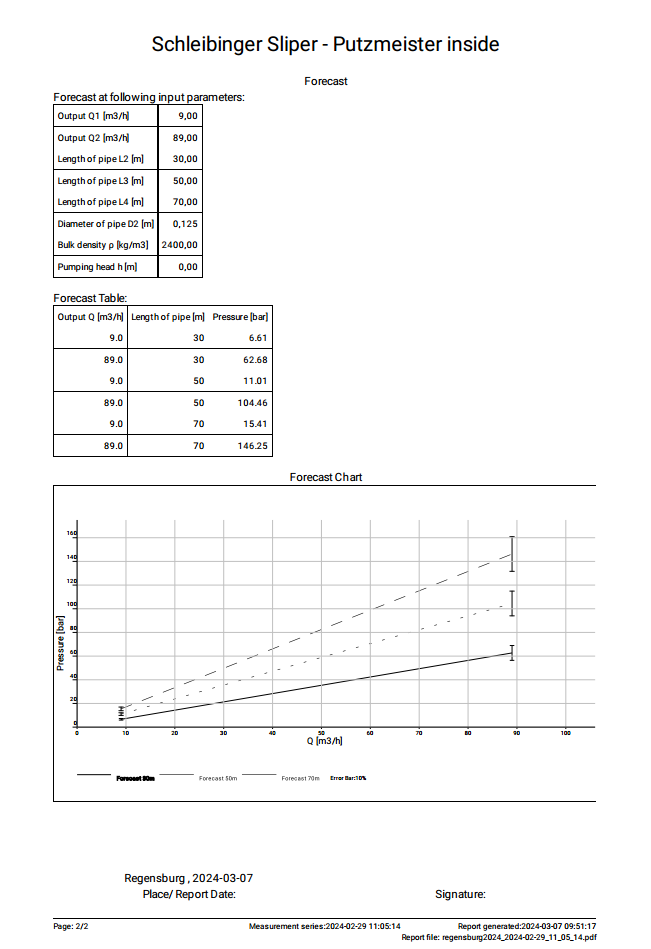

SLIPER report page 2
